High Torque YPS 76/90,90/107,92.5/114 Parallel Double Screw Gearbox Reducer

Model Number : YPS

Certification : ISO9001

Place of Origin : Jiangsu,China

MOQ : 1PCS

Payment Terms : T/T, L/C

Supply Ability : 500PCS per Month

Delivery Time : 35-40 Working Days

Packaging Details : Wooden Case

Gearing Arrangement : Helical

Gear Material : 20CrMnTi

Input Speed : 1500RPM

Central Distance of Output Shaft : 76mm-110mm

Screw Diameter : 76mm-110mm

Housing Material : Cast Iron

Color : Customized

Input Form : Solid Shaft

Output Form : Spline Shaft Output

Contact Now

Product Description

YPS series gearbox is a standard driving part designed and developed for counter-rotating parallel twin screw extruder. Its gear is made of low carbon alloy steel by carbon penetrating, quenching and teeth grinding to reach high strength and precision. The output shaft is finely made of special alloy steel to suit the requirement of large output torque.

Product Feature

1. Well-balanced appearance

2. Advanced structure

3. Superior bearing performance

4. Smooth operation

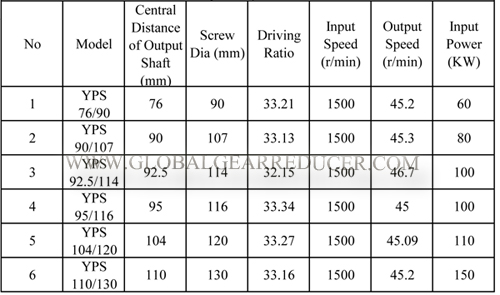

Technical Parameter

High Torque YPS 76/90,90/107,92.5/114 Parallel Double Screw Gearbox Reducer

Application:

YPS series parallel twin screw gearbox is widely used in a counter-rotating parallel twin screw extruder.

Core Competencies

1. Our company has a professional managing team.

2. Our company has a professional engineering team.

3. Our company has advanced manufacturing equipment.

4. Our company has precision testing equipment.

5. We can customize the gearbox according to the customer's requirements.

6. Our products have reliable after-sales service.

High Torque YPS 76/90,90/107,92.5/114 Parallel Double Screw Gearbox Reducer

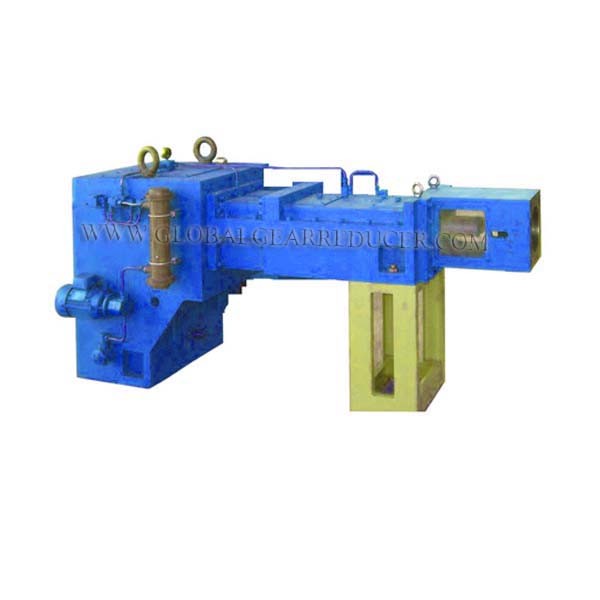

High Torque YPS 76/90,90/107,92.5/114 Parallel Double Screw Gearbox Reducer Images
